532nm拉曼激光器

NBET-III-532-R/1~100mW

SINGLE LONGITUDINAL MODE GREEN LASER AT 532 nm

All solid state single longitudinal mode green laser at 532 nm is designed especially for Raman Spectrograph, which has the features of narrow spectral linewidth, high power stability, high wavelength stability and easy operating. They also can be used for sensing and biomedical applications.

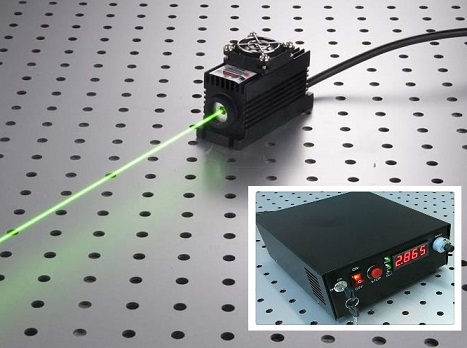

產品圖片

技術參數

Wavelength (nm) 532±1

Output power (mW) >1,5,10,20…100

Transverse mode TEM00

Central wavelength stability (rms, over 2 hours) (pm) <10

Longitude mode Single

Operating mode CW

Power Stability (rms, over 4 hours) <1%,<3%,<5%

Warm-up Time (minutes) <10

M2 factor <1.2

Beam divergence,full angle (mrad) <1.2

Beam Diameter at the aperture (mm) ~1.2

Beam height from base plate (mm) 24.8

Spectral linewidth (nm) < 0.00001

Pointing stability after warm-up (mrad) <0.05

Noise of amplitude (rms,1~20MHz) <0.5%

Coherence length (m) >50

Polarization ratio > 100:1

Power supply (90-264VAC) PSU-III-FDA

Modulation Modulation isn’t available

Operating temperature(℃) 10~35

Weight of driver (kg) 1.2

Expected lifetime (hours) 10000

Warranty 1 year

選型指南

NBET-FN-360nm	360nm半導體激光器，數顯可調。
NBET -III-400/405/410/415nm	400nm半導體激光器，數顯可調。
NBET-III-532nm	532nm半導體激光器，數顯可調。
NBET-F-532nm	532nm半導體激光器，數顯可調。
NBET-FN-532nm	532nm半導體激光器，數顯可調。
NBET-D-785nm	785nm半導體激光器，數顯可調。
NBET-III-1064nm	1064nm半導體激光器，數顯可調。
