808nm熒光激光器

 808nm熒光激光器

  拉曼光譜，光譜分析，光譜定標，熒光激發，微光檢查，PIV，激光測量及檢測，科學實驗，準直，光學儀器等。

產品特點

  高穩定型，高可靠性，操作簡便；

  光斑質量好，

  電源自帶過熱、限流保護電路，可外接高速調制；

  全球不同環境的充分考驗，石英壽命10000小時，

  低噪音

  采用優質光纖耦合輸出，高耦合效率；

  適用于熒光激發，光譜分析，激光制版等。

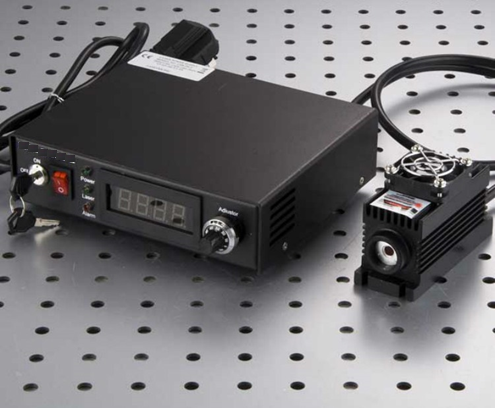

808nm熒光激光器

NBET-III-808/1~2500mW

INFRARED DIODE LASER AT 808nm

Diode infrared laser module at 808nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.

技術參數

Wavelength (nm)808±3

Operating mode CW

Output power (mW)> 1,100,200,300,,…2500

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode     Multimode

Dimensions of beam at the aperture (mm) ~5×8

Beam divergence, full angle (mrad) <3.0

Warm-up time (minutes)<5

Beam height from base plate (mm) 24.8

Operating temperature (℃) 10~35

Power supply (85-264VAC)                  PSU-III-LED          PSU-III-FDA

Modulation optionTTLon/off, 1Hz-1KHz,1KHz-10KHz 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours) 10000

Warranty 1 year

選型指南
