高性能手持光功率計

• 市面上先進的便攜式光功率計

• 兼容32 位和64 位Windows 7 和XP 的軟件

• USB 電腦接口

• 真實RMS 測量

• 為光電二管提供10 pA 的分辨率

• 模擬和數字濾波

• 通過內存（250K 數據樣本）或USB 閃存驅動器存儲數據

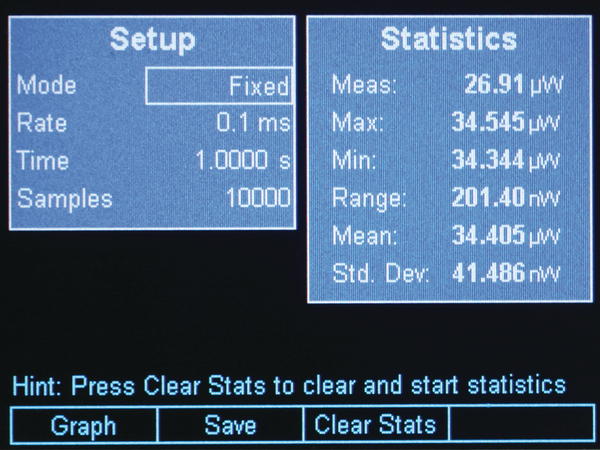

• 繪圖、制圖、數學、統計學和機載數據后處理

能夠進行脈沖峰間測量，在樣本速率為250 kHz 時，重復頻率高達4 kHz。脈沖、峰間和DC 光源測量可以W、dBm、dB、J、A、V 和Sun 等為單位進行顯示，取決于使用的探測器類型。

光功率計配備了可充電電池、電池充電器和手提箱。用戶可現場更換電池，也可以單獨訂購。

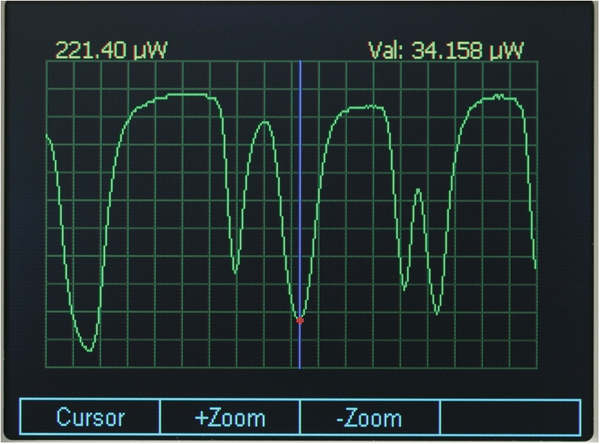

用戶可以從6 種顯示顏色中進行選擇，以滿足他們特定的照明條件以及激光護目鏡的顏色。也可以將測量結果以不同的顯示格式顯示出來，如數字、圖形、條狀和帶狀圖。

參數如下：

Sampling Rate (kHz) 250

Measurement Rate (kHz) 10 (CW measurements, semiconductor detectors)

Display Refresh Rate (Hz) 20

Maximum Rep Rate 10 kHz for Pyroelectric, pulse voltage 20 kHz for Photodiode detectors, peak to peak power

Resolution (% of Full Scale) 0.0004 % full scale

Accuracy (%) ±0.2 % for CW, ±1 % for Peak to Peak, Pulse to Pulse, and Integration Mode (Peak to Peak, Pulse to Pulse, Integration)

Maximum Detector Input Current (mA) 25

Maximum Detector Input Voltage (V) 130

Analog Output (User Selectable) 0-1 V , 0-2 V, or 0-5 V into 1MW mono 3.5 mm phone jack

Analog Output Bandwidth DC-200 kHz (Photodiode), DC-1 MHz (Thermo or Pyro)

Display Type 82 x 62 mm Graphical, Color TFT LCD, ¼ VGA

Display Formats 14 mm Numeric, Bar Chart, Min/Max Bar, Statistics, Analog Needle

Communication Interfaces USB

Internal Sample Storage (data points) 250,000

External Sample Storage (data points) Defined by external USB Flash drive (user supplied)

Battery Type and Life (Typical) Rechargeable, 8 Hours

Power Requirements 90-264 VAC, 24V 1.5A

Operating Temperature 5°C to 40°C, <70% RH, non-condensing

Storage Temperature Range -20°C to 60°C, <90% RH

Weight [lb (kg)] 2.3 (1.04)

選配探頭：

918D and 818 系列光電二管推測器的校準測量(1)

Minimum Detectable Power 11.1 pW for photodiode, 1 uW for thermopile, 6.7 uJ for pyroelectric

Maximum Input Power Detector dependent

Wavelength Range (nm) 200-1800

Supported Advanced Features Temperature Compensation and Attenuator Sensing

818P 系列熱電堆推測器的校準測量(1)

Minimum Detectable Power (mW) 0.001

Maximum Input Power (kW) 3

Wavelength Range (mm) 0.190-11

818E 系列熱電堆推測器的校準測量(1)

Minimum Detectable Energy (mJ) 6.7

Maximum Measurable Energy (J) 15

Wavelength Range (mm) 0.190-20
